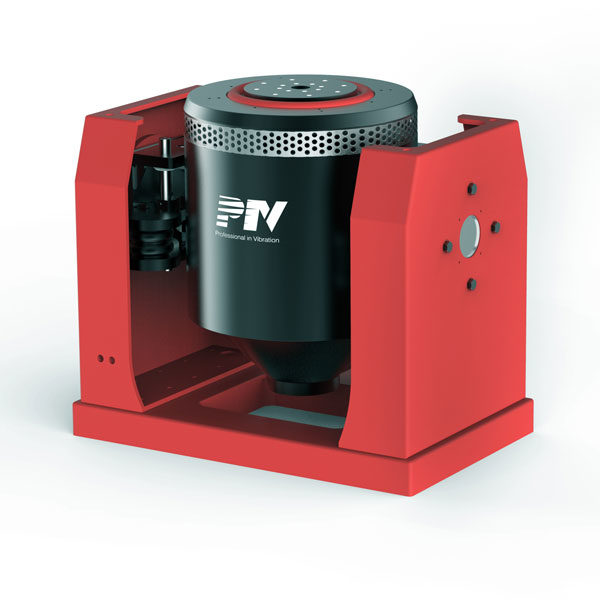

High Force Series

The high force series shakers are featured by large force, high cooling efficiency, high bearing capacity and excellent guiding capacity, which are suitable for large specimen test. Typical fields of applications are rail transit, ships, automotive, aerospace and aviation, military and defense, etc.

Description

Features:

  1. The optimized armature is characterized by high strength, high vibration-resistance, good stiffness and high first resonance frequency;
  2. The armature winding adopts high-strength material to ensure excellent insulating performance and high structural strength;
  3. Adopt water-cooling design for short circuit ring to improve cooling efficiency;
  4. Adopt parallel design for water circuit to improve cooling efficiency and ensure that the heating parts can be cooled down sufficiently;
  5. Optimized magnetic circuit design to achieve higher magnetic circuit utilization and lower flux leakage;
  6. Random excitation force is equivalent with sine excitation force;
  7. Multi-interlock protection to ensure the safety of system and customer’s specimen.

Specification:

System model TS80W-445 TS80WLS3-445 TS80WLS4-445 TS100-550 TS100LS3-550 TS120-550
Sine(peak)/Random(rms)(kN) 80 80 80 100 100 120
Shock force(kN) 160/240 160/240 160/240 200/300 200/300 240/360
Frequency range(Hz) 5-2,500 5-2,500 5-2,400 5-2,500 5-2,500 5-2,500
Max.acceleration(m/s²) 1,000 1,000 1,000 1,000 1,000 1,000
Max.velocity(m/s) 2 2 2 2 2 2
Max.displacement(mm) 51 76 100 51 76 51
Max.load(kg) 800 800 800 1000 1000 1000
Mass of moving elements(kg) 60 60 60 90 90 90
Armature diameter(mm) 445 445 445 550 550 550
Body suspension
natural frequency(Hz)
2.5 2.5 2.5 2.5 2.5 2.5
Power amplifier model PWA80W PWA80W PWA80W PWA100W PWA100W PWA120W
Power(kVA)  80 80 80 100 100 120
Power requirement(kVA)  140 140 140 160 160 180
Cooling type Water cooled Water cooled Water cooled Water cooled Water cooled Water cooled



System model TS120LS3-550 TS160-650 TS160LS3-650 TS180-650 TS180LS3-650
Sine(peak)/Random(rms)(kN) 120 160 160 180 180
Shock force(kN) 240/360 320/480 320/480 360/480 360/480
Frequency range(Hz) 5-2,500 5-2,100  5-2,100  5-2,100  5-2,100
Max.acceleration(m/s²) 1,000 1,000 1,000 1,000 1,000
Max.velocity(m/s) 2 2 2 2 2
Max.displacement(mm) 76 51 76 51 76
Max.load(kg) 1000 2,500 2,500 2,500 2,500
Mass of moving elements(kg) 90 150 150 150 150
Armature diameter(mm) 550 650 650 650 650
Body suspension
natural frequency(Hz)
2.5 2.5 2.5 2.5 2.5
Power amplifier model PWA120W  PWA160W PWA160W PWA180W PWA180W
Power(kVA)  120 160 160 180 180
Power requirement(kVA)  180 230 230 250 250
Cooling type Water cooled Water cooled Water cooled Water cooled Water cooled



System model TS200-650  TS200LS3-650 TS300LS3-870 TS350LS3-870 TS400LS3-870
Sine(peak)/Random(rms)(kN) 200 200 300/240 350/250 400/300
Shock force(kN) 400/600 400/600 600/900 700/900 800/1000
Frequency range(Hz) 5-2,100  5-2,100 5-1,700 5-1,700 5-1,700
Max.acceleration(m/s²) 1,000 1,000 1,000 1,000 1,000
Max.velocity(m/s) 2 2 2 2 2
Max.displacement(mm) 51 76 76 76 76
Max.load(kg) 2,500 2,500 5,000 5,000 5,000
Mass of moving elements(kg) 150 150 300 310 330
Armature diameter(mm) 650 650 870 870 870
Body suspension
natural frequency(Hz)
2.5 2.5 2.5 2.5 2.5
Power amplifier model PWA200W PWA200W PWA300W PWA350W PWA400W
Power(kVA)  200 200 380 420 460
Power requirement(kVA)  280 280 420 500 530
Cooling type Water cooled Water cooled Water cooled Water cooled Water cooled
